AC ANTENNAS AC-CXU3-2

CXU3-2

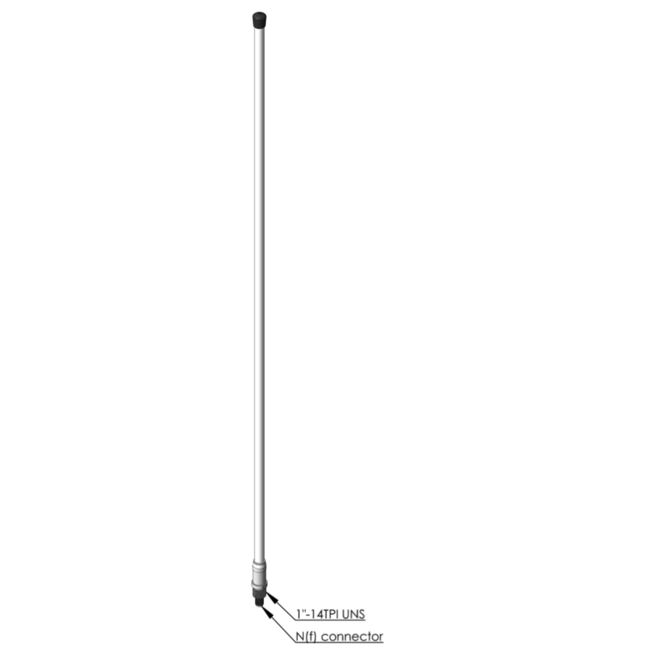

The CXU3-2 is an omnidirectional dipole antenna. The antenna is for use with radio telephone, two-way business radio and many other UHF applications. This antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of brass. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna is always subject for improvement. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on Sea and Land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No: 330003-T
• Product Name: CXU3-2
• Product Group: UHF
• Frequency Range [MHz]: 410.0-430.0
• Connector: N-Female
• Max. Input Power [Watt]: 100

MECHANICAL SPECIFICATIONS:

• Sections: 1
• Length [m/ft.]: 1.44/4.70
• Weight [kg/lbs.]:0.60/1.30

BROCHURE

• CXU3-2 Brochure
