AC ANTENNAS AC-CX-UHF5-ML-A

CX-UHF5-ML-A

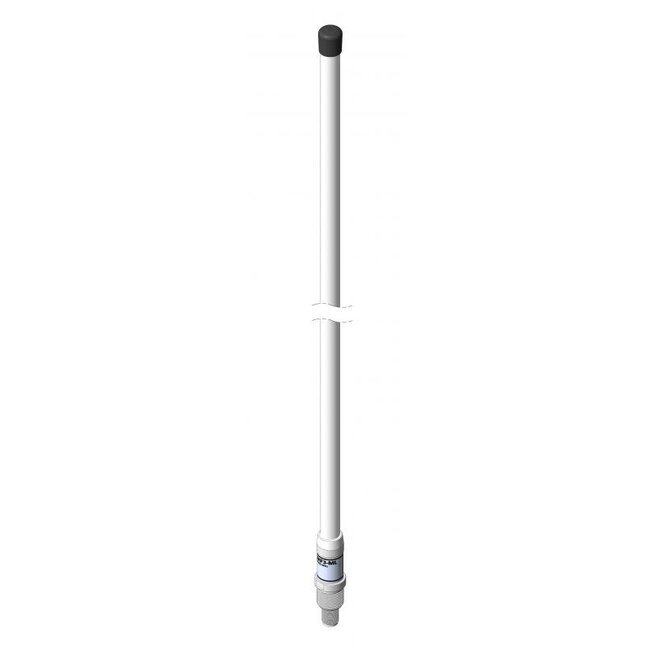

The CX-UHF5-ML-A has an omnidirectional 3 dBd gain antenna and is used for radio telephone systems, two-way business radios and many other UHF applications. The antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper. The antenna is manufactured using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna fits the included mount N275F directly. The antenna is subject for improvement at all times. The antenna has the same rugged design as all other AC Antennas products thus it withstands harsh environmental conditions, both on sea and land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No: 350010-T
• Product Name: CX-UHF5-ML-A
• Product Group: UHF
• Frequency Range [MHz]: A: 420.0-450.0 B: 420.0-455.0 C: 415.0-455.0
• Connector: N-Female
• Max. Input Power [Watt]: 250

MECHANICAL SPECIFICATIONS:

• Sections: 1
• Length [m/ft.]: 2.17/7.12
• Weight [kg/lbs.]: 2.10/4.63

BROCHURE

• CX-UHF5-ML-A Brochure
