CELmar0T

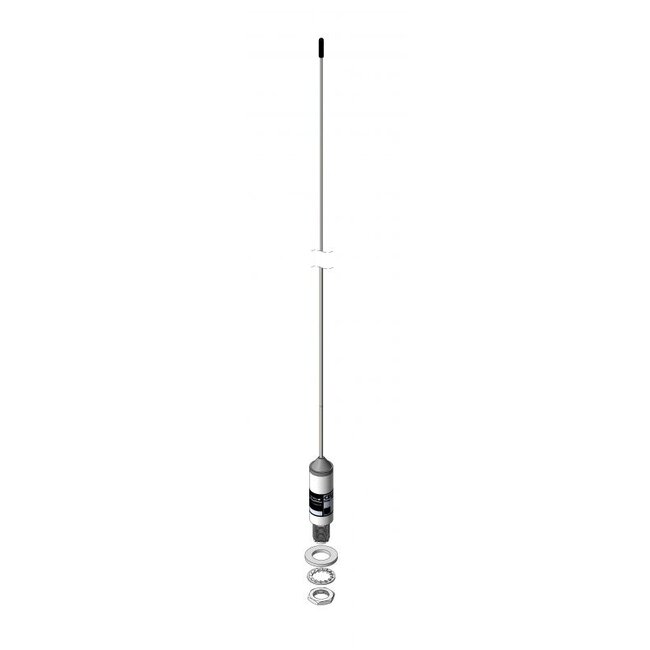

The CELmar0T is a stainless steel omnidirectional antenna for marine and land based solutions. It is an extremely flexible whip antenna. Suitable for rail and mast mounting. No mount included. Covers center frequency ±3% within the frequency range of 141-179MHz, cutting chart enclosed. The antenna is manufactured in premium quality materials in order to prevent galvanic corrosion. Radiating elements are made of copper. The antenna is manufactuted using crimping technology giving the antenna a 4-5 times stronger build-up. The antenna has the same rugged design as all other AC Antennas products thus it withstand harsh environmental conditions, both on sea and land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No: 100056-P
• Product Name: CELmar0T
• Product Group: VHF
• Frequency Range [MHz]: A: 141-174* / B: 146-162.5 / C: 160-164
• Connector: UHF-Female
• Max. Input Power [Watt]: 100

MECHANICAL SPECIFICATIONS:

• Sections: 1
• Length [m/ft.]: 1.21/4.00
• Weight [kg/lbs.]: 0.15/0.33

BROCHURE

• CELmar0T Brochure
