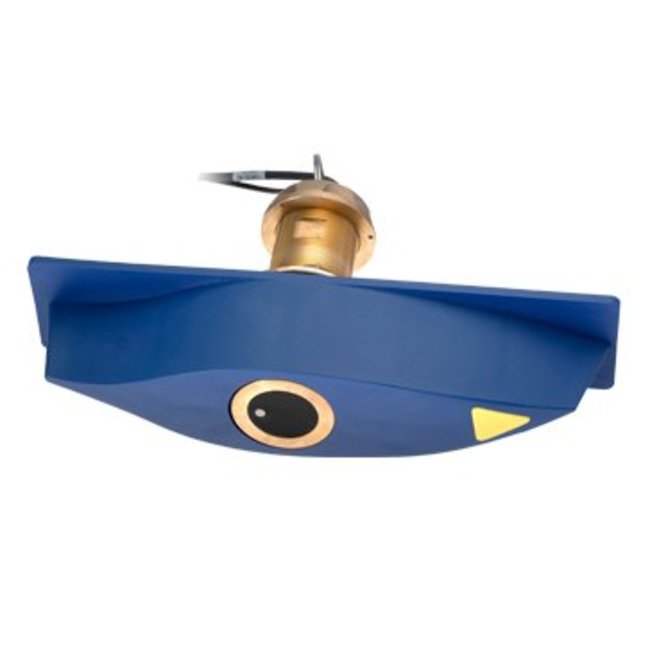

Smartsensor B122 DT
The B122 is a robust, long-stemmed transducer engineered specifically for thick-hulled wooden boats or vessels with steep deadrise angles. Its included high-performance fairing ensures the transducer beam is perfectly aligned for strong, reliable echo returns, delivering exceptional depth performance, even at high speeds.
Designed with convenience in mind, the B122 features a retractable insert that can be easily removed for maintenance or storage. With just a single cable connection to a compatible instrument or display, you get accurate depth and temperature data without the hassle.
FEATURES
- Depth and temperature
- 100 W
- 200 kHz frequency most common marine instrument systems
- For thick-hulled or steep-deadrise vessel
- Can install as a low-profile mount with adapter ring
- Retractable insert in a bronze housing only
- Also available in NMEA 0183 or NMEA 2000® versions
SPECIFICATIONS
- Power Rating: 100 W
- Max Deadrise Angle: 28°
- Housing: Bronze
- Functions: Depth, Temperature
- Hull Material: Fiberglass or wood
- Max Vessel LOA: Up to 9 m (30')
- Hole Size: 51 mm (2"), 57 mm (2-1/4") installation with adapter ring
- Acoustic Window: Urethane
- Common Use: Cruising/Racing Sailboats, Leisure/Yachting
- Conventional Beam: 14°
- Data Rate: 1X per second
- Max Deadrise: Up to 28° with fairing
- Max Depth: Up to 180 m (590')—Broadband
- Mounting Style: Thru-Hull with Fairing
- Retractable housing: Yes
- Single or Dual Frequency: Conventional Single Frequency
- Tilted Element: No
- Weight: 3.9 kg (8.7 lb.)
