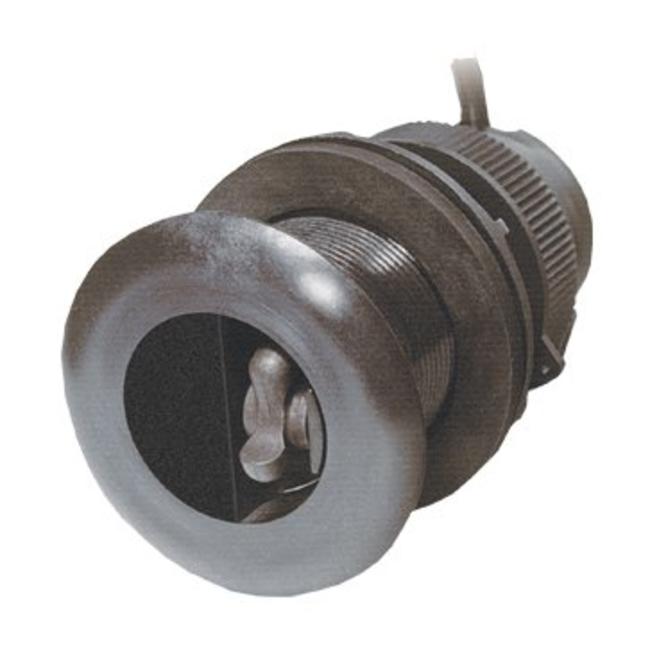

AIRMAR Smart Sensor DST810 Plastic Retractable Triducer 235kHz

Type: Smart Sensor DST810

This combination triducer gives you accurate information about depth, speed and water temperature. The trisducer is supplied with a thru-hull / ground sleeve for installation in the bottom of the ship. The transducer can easily be pulled out for cleaning and maintenance. The data from the Triducer can be displayed on any radar, chart plotter, or device that accepts NMEA 0183 or NMEA 2000.The Airmar type DST810 breakthrough sensor fits into the Airmar type P617V breakthrough sleeve (included with the DST810). Since the much-used airmar thru-hull transducer type DST800 is also supplied with the thru-hull type P617V, an exchange / upgrade of existing type DST800 with type DST810 is possible without great effort. Popular depth sensor for shallow water performance.

The DTS810 has Bluetooth for quick setup with Airmar's CAST app.

In addition, heel and trim can now also be measured with the new sensor. Furthermore, the information is now passed on to the instruments at up to 5 Hz.

This information, combined with Airmar’s powerful and simple CAST App, makes
heel-compensated speed calibration across multiple heel angles and speed ranges both fast and intuitive, and is independent of the onboard instruments.
All speed calibrations and NMEA configurations are stored in the DST810 sensor—not in the displays

The DST 810 is the first retractable triducer including 6 MTR cables

incl. 6 mtr cable

Network            : NMEA-2000

Functions           : speed 44 kn

                           depth 0,5 to 100 mtr

                         : temperature 0-40°C

All in a compact screw mounting

Frequency          : 235 kHz

Mounting            : Breakthrough assembly

Housing material : Plastic

(also available in bronze or stainless steel, you can request a price)

NEW

• 5 Hz speed output (5X per second) for visibly
   smoother speed-through-water reporting and faster data for
   better decision making
• Integrated attitude sensor for heel and trim benefits
   sailing and power boats. Simple attitude calibration to correct for off-center
   mounting

Wireless connectivity to Airmar’s CAST App has new user-friendly benefits:

The intelligent multisensor DST810 is easy to calibrate together with the CAST ™ app from Airmar (download from AppStore ™ from Apple ™ and PlayStore ™ from Google ™).

Calibrate the DST810 in a simple, intuitive way regardless of the instrument brand or model that is on board. Conduct basic and advanced heel-compensated speed calibrations for improved speed-through-water outputs.

Across the speed range

− Advanced Speed Calibration allows for manual speed
    entries for multiple heel angles and up to 10 speeds,
    formerly only possible through expensive PC software
− Enable and disable PGN’s and set offset and output rates

Scope of delivery

• Airmar DST810 0 0°thru-hull transducer NMEA2000
• P617V plastic breakthrough sleeve
• Mounting material
• Documentation

Only one hole through the hull simplifies the installation, an attractive feature for boat builders and boat owners alike.Airmar’s innovative housing design incorporates the popular self-closing valve. When a transducer insert is removed, the valve minimizes water flow into the boat

Brochure: FURUNO Smart Sensor DST810 plastic triducer
