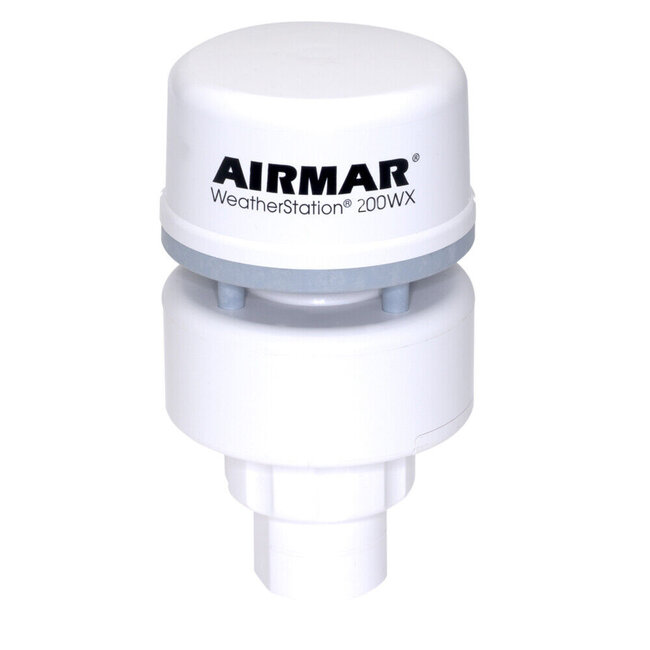

200 WX Weatherstation
The WeatherStation 200WX is the ideal solution for mobile weather-monitoring applications. It is packed with sensors in a compact and rugged IPX6-rated housing, making it suitable for use on moving platforms such as broadcast vehicles, emergency services, and military equipment. The 200WX accurately calculates dynamic true wind speed and direction by using apparent wind, vehicle speed, and heading. Apparent wind is the wind felt while in motion, such as when holding your hand out of a moving vehicle. The unit includes an internal 10 Hz GPS and a three-axis electronic compass, which provide heading, position, speed-over-ground, and course-over-ground data necessary for precise wind calculations while in motion. The 3D compass uses a three-axis rate gyro for dynamic stabilization, improving turn-rate data and maintaining accurate compass performance even in hilly or mountainous terrain, making it ideal for mission-critical use.
FEATURES
- Ultrasonic measurement of apparent and Dynamic true wind speed and direction
- Barometric pressure
- Air and wind chill temperature
- Relative humidity (field serviceable option)
- Calculated dew point and heat index
- GPS position, speed over ground, and course over ground
- Three-axis, solid-state compass with dynamic stabilization
- Three-axis rate gyro supplies rate-of–turn data
- Three-axis accelerometer for best-in-class pitch and roll information
- Housing IPX6 rated for water-ingress protection
- Data output via a single cable (various lengths available)
- NMEA 0183/ASCII serial data protocol over RS-232 interface
- NMEA 2000 protocol over CAN
SPECIFICATIONS
- Recommended Use: Marine or Land-Based, Mobile or Stationary
- Humidity: Optional
- Power Supply Voltage: 9 to 40 VDC
- Power Supply Current: <75 mA (<0.9 W) at 12 VDC
- Communications Available Protocol: Serial - NMEA 0183, CAN - NMEA 2000
- Waterproof Rating: IPX6 (Relative Humidity/IPX4)
- Air Temp Accuracy: ±1.1°C at 20°C
- Air Temp Range: -40 to 80°C (-40 to 176°F)
- Air Temp Resolution: 0.1°C
- Apparent Wind Speed and Angle: Yes
- Barometric Pressure Accuracy: ±0.5 hPa at 25°C (or better)
- Barometric Pressure Range: 300 to 1100 hPa
- Barometric Pressure Resolution: 0.1 hPa
- Certs And Standards: CE, IPX6 (IPX4 with optional RH sensor), RoHS, IEC61000-4-2, IEC60945, IEC60950_1C, IEC60950_22A, EN55022, EN55024, EN14982
- Communications Available Hardware Interface: Serial RS232, Serial RS422, CAN
- Communications Serial Data Transmission Code: ASCII
- Communications Serial Output Rate: 1 Hz typical. User selectable. 10 Hz max recommended
- GPS Position Accuracy: 2.5 m (8’) CEP
- Mobile: Yes
- Mounting Thread: Standard 1”-14 UNS (3/4” NPT optional)
- NMEA 2000 LEN: 2
- Note: Cables sold separately unless otherwise specified
- Operating Temp Range: -25 to 55°C (-13 to 131°F)
- Optional RH Accuracy: ±5% RH at 0 to 90% RH at 20°C
- Optional RH Range: 0 to 100% RH
- Optional RH Resolution: 0.1% RH
- Pitch Roll Accuracy: ±1° in range of ±30°
- Pitch Roll Measurement Type: MEMS
- Pitch Roll Range: 60°
- Pitch Roll Resolution: 0.1°
- Theoretical Wind Speed and Direction: Yes
- Three Axis Compass Dynamic Heading Accuracy: 2° dynamic heading accuracy
- Three Axis Compass Range: 0 to 359.9°
- Three Axis Compass Static Heading Accuracy: 1° static heading accuracy
- True Wind Speed and Direction: Yes
- Weight: 300 g (0.7 lb.)
- Wind Direction Accuracy: ±3° at 10 m/s
- Wind Direction Calculations: User configurable damping
- Wind Direction Range: 0° to 359.9°
- Wind Direction Resolution: 0.1°
- Wind Speed Accuracy: 5% at 10 m/s at 4 angles
- Wind Speed Calculations: User configurable damping
- Wind Speed Range: 0 to 40 m/s (0 to 89 MPH)
- Wind Speed Resolution: 0.1 m/s
