AC ANTENNAS AC-CELmar0

CELmar0

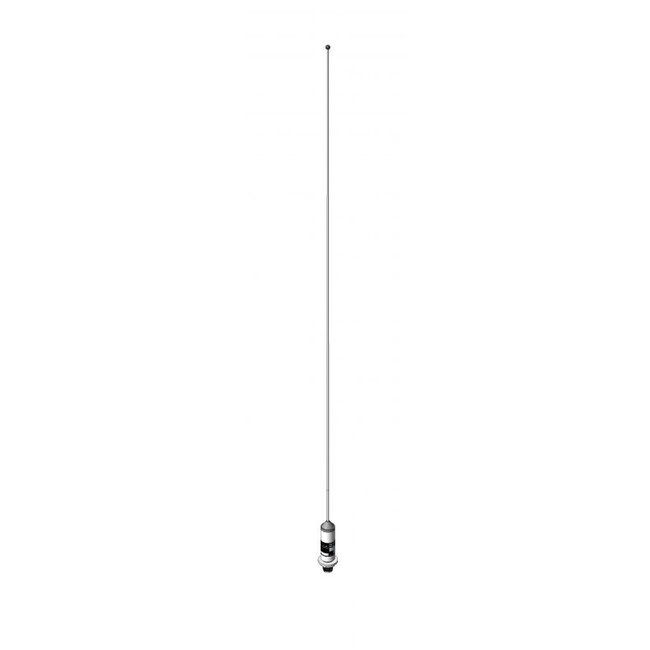

The CELmar0 is a stainless steel omnidirectional antenna for maritime and land-based solutions. It is an extremely flexible whip antenna. It is suitable for rail and mast mounting. The antenna is made of high quality materials to prevent galvanic corrosion. The radiating elements are made of copper. The antenna is manufactured using the crimping technique, which gives the antenna a 4-5 times stronger construction. The antenna has the same robust design as all other AC Antennas products, so it can withstand harsh environmental conditions, both at sea and on land.

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS:

• Part No. : 100057-P
• Product name : CELmar0
• Product group : VHF
• Frequency range [MHz] : A: 156.0-162.5 / B: 88-108 / C: 160-250
• Connection : UHF socket
• Max. input power [Watt] : A: 100 B+C: Receive

MECHANICAL SPECIFICATIONS:

• Sections : 1
• Length [m/ft.] : 1.00/0.28
• Weight [kg/lbs.] : 0.15/0.33

BROCHURE

• CELmar0 Brochure
